How measuring contact angles at high temperatures can help develop fuel cells

Fuel Cells - Studying contact angles at high temperatures

Fuel cells are an emerging technology allowing the conversion of chemical energy into electrical energy through for example the redox reaction of hydrogen with oxygen to form water. During the redox reaction the hydrogen atoms transfer their electron to the anode. The electrons are conducted to the cathode. The resulting electric current can be used to power electric devices like e.g. an electric car motor.

At the cathode the electrons ionise the oxygen atoms. The hydrogen ions migrate through an electrolyte and recombine with the ionised oxygen to form water. The electrolyte plays a key role in this process for which different systems were studied such as potassium hydroxide, salt carbonates, and phosphoric acid which can be embedded in polymeric matrices.

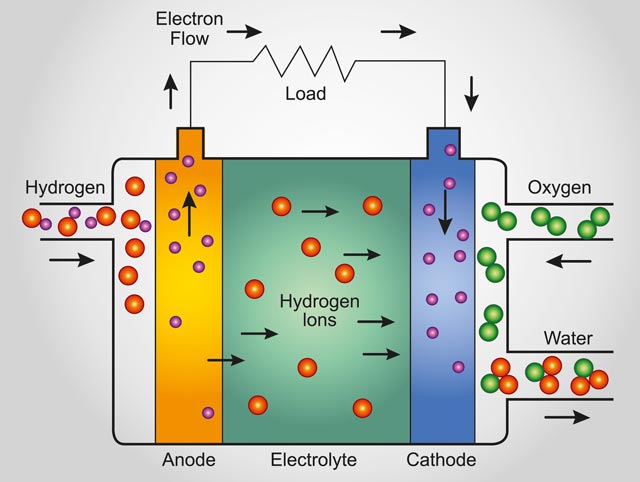

Operating principle of a polymer electrolyte fuel cell (electrolyte: polybenzimidazole polymer membrane with embedded phosphoric acid; electrodes: platinum-coated carbon paper)

Operating principle of a polymer electrolyte fuel cell (electrolyte: polybenzimidazole polymer membrane with embedded phosphoric acid; electrodes: platinum-coated carbon paper)

One of the most promising types of fuel cells that could be used as power sources for cars and houses are polymer electrolyte fuel cells possessing a high energy conversion efficiency. Especially, high temperature polymer electrolyte fuel cells (HT-PEFC) are gaining increased attention due to several advantages compared to systems that work at lower temperature: high efficiency, avoiding cooling system, reduced CO poisoning of the platinum electrodes, and improved reactivity.

Protic liquids such as phosphoric acid work as the proton conduction medium in these systems. The major drawback however is the leaching of phosphoric acid within the membrane electrode assembly leading to an inhomogeneous distribution and a deterioration of the HT-PEFC during long-term operation.

In order to understand how the phosphoric acid is affecting the battery interior a deeper understanding of its wetting on the fuel cell materials at the process temperatures is required. Few studies focus on the wetting behaviours of phosphoric acid in HT-PEFCs. Halter et al. have recently studied the wetting mechanisms and found that phosphoric acid concentration and the temperature both play a role in the wetting behaviour of HT-PEFC. To this end, contact angle measurements were done on two different surfaces: polytetrafluoroethylene (PTFE) and highly oriented pyrolytic graphite (HOPG).

When the temperature increased the contact angle of 85 wt% phosphoric acid on PTFE increased from 104° at 25 °C over 110° at 100 °C to 112° at 160 °C. When the phosphoric acid concentration was increased from 0 to 85 wt% at 25 °C, the contact angle on PTFE decreased from 107° to 104°. So a slightly higher contact angle is observed when the temperature increases while increasing the phosphoric acid concentration slightly decreases the contact angle. Both trends are similarly strong resulting in a comparable wetting behaviour of concentrated phosphoric acid at 160 °C and water at room temperature.

On the highly oriented pyrolytic graphite the contact angle of 85 wt% phosphoric acid increased from 40° at 25 °C over 53° at 100 °C to 54° at 160 °C and decreased from 64° to 40° with increasing phosphoric acid content. HOPG compared to PTFE shows a much stronger wettability under process conditions. While the HOPG surface possessed a contact angle of 40° for phosphoric acid which is a spontaneous wetting behaviour, PTFE with a contact angle of 104° for phosphoric acid was non-wetting so the leached phosphoric acid will show a strong tendency to wet the HOPG parts in the fuel cell.

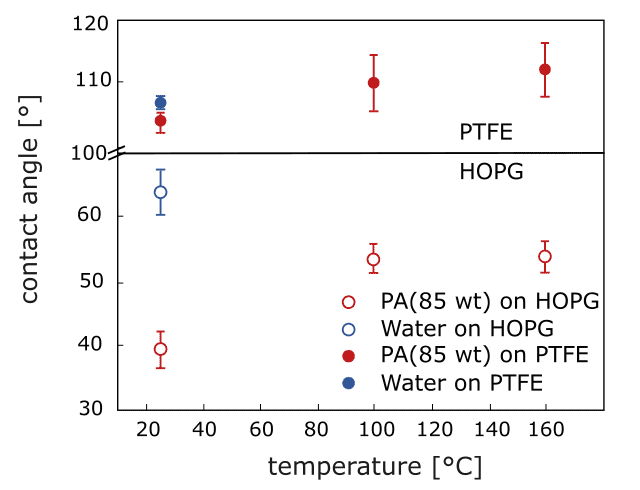

The contact angles of 85 wt% phosphoric acid (under N2 atmosphere) vs. water at room temperature (in air) on polytetrafluoroethylene (PTFE) and highly oriented pyrolytic graphite (HOPG) at various temperatures, respectively

The contact angles of 85 wt% phosphoric acid (under N2 atmosphere) vs. water at room temperature (in air) on polytetrafluoroethylene (PTFE) and highly oriented pyrolytic graphite (HOPG) at various temperatures, respectively

The temperature dependency of surface chemical properties
Surface chemical properties like surface tension strongly depend on the temperature. While water for example has a surface tension of 72.75 mN/m at 20 °C the surface tension lowers to 66.18 mN/m at 60 °C. Since the contact angle of a given liquid on a solid surface is also a function of the liquids surface tension, the contact angle is temperature dependent.

Hence, a strict control of the temperature is required which can be realised in special temperature chambers that are mounted on the contact angle measuring system. Different chambers allow a precise temperature control over a broad range from -30 °C to 700 °C. All chambers possess gas inlets to work under the desired atmosphere.

Chamber Type Temperature range [°C]
TFC 100 liquid circulation -10 … 100
TPC 160U Peltier element -30 … 160
TEC 400U electrical heating RT … 400
TEC 700U electrical heating RT … 700

In summary the authors closely studied the effects of temperature and phosphoric acid concentration on the wetting behaviour of typical materials in high temperature polymer electrolyte fuel cells (HT-PEFC) at up to 160 °C. They found a non-wetting character of the phosphoric acid towards PTFE and a spontaneous wetting on HOPG which provides a good understanding to control the wetting behaviour of HT-PEFC and guides the development of porous materials within HT-PEFC in the future.

An optical contact angle measuring and contour analysis system OCA 25 with electrical temperature control unit TEC 400U was used in this research. For more information please refer to the original publication:
